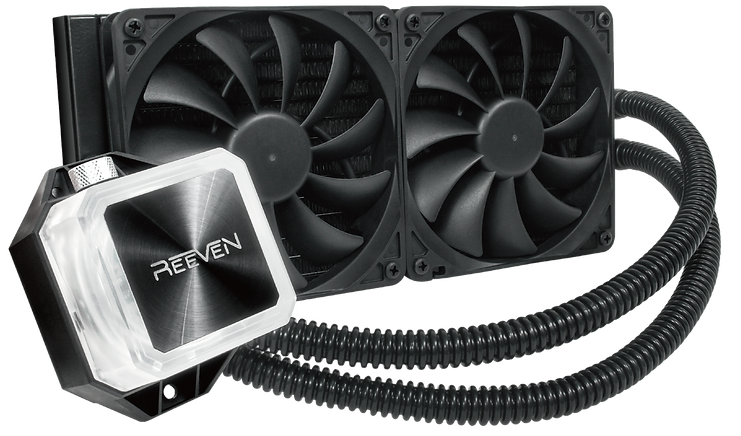

NAIA 240

Reevens first liquid cooler combines efficient cooling, simple maintenance

and intuitive design into an all-in-one solution.

The unique large-pump-design gives Naia 240 a superior cooling efficiency and allows users to add coolant as needed. Included in the box are three bottles of coolant dye, enabling users to customize coolant color and make it match their personal systems theme. Due to its special WAP-Design (Water-Above-Pipe Design), the cooler can also be installed in any orientation, without sacrificing pumping power.

The curved baseplate provides greatly increased heat transfer and heat dissipation, while two 120mm Coldwing fans deliver high airflow at whisper quiet 25 dBA.

Naia 240 provides a unique combination of the latest cooling technology, durability and reliability for a carefree user experience.

Micro-Channel

The curved baseplates 0,11mm Micro-Channels support thermal dissipation, resulting in a more efficient operation and heat-transfer.

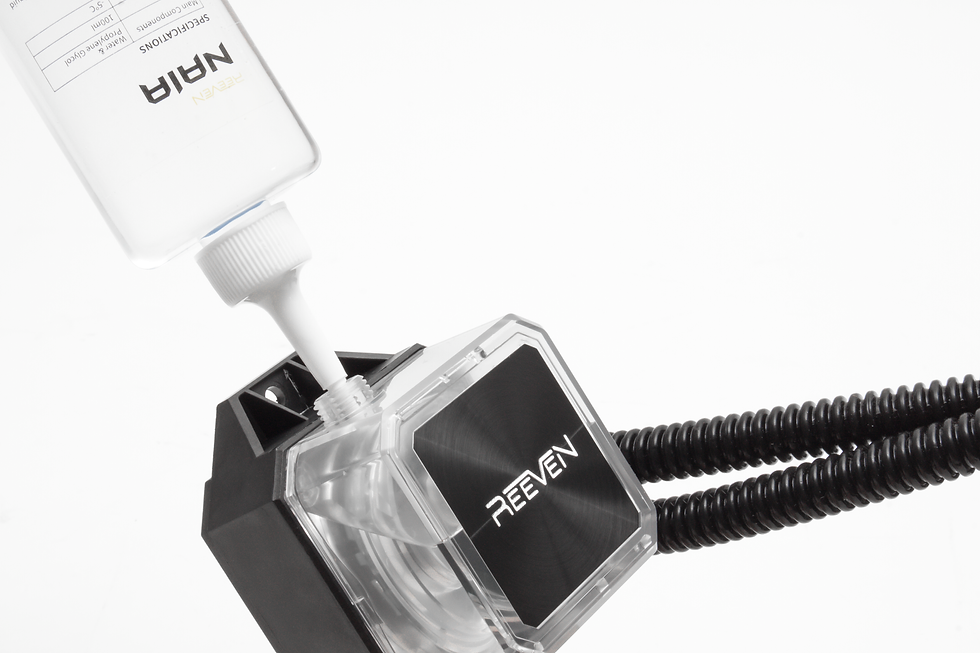

Refillable Tank

A factory sealed opening on the pump block allows users to manually control coolant levels. Transparent tank walls also make it very easy to spot unwanted air and water bubbles.

Note: When switched on for the very first time, the motor might produce some noise due to air being forced out of the chamber.

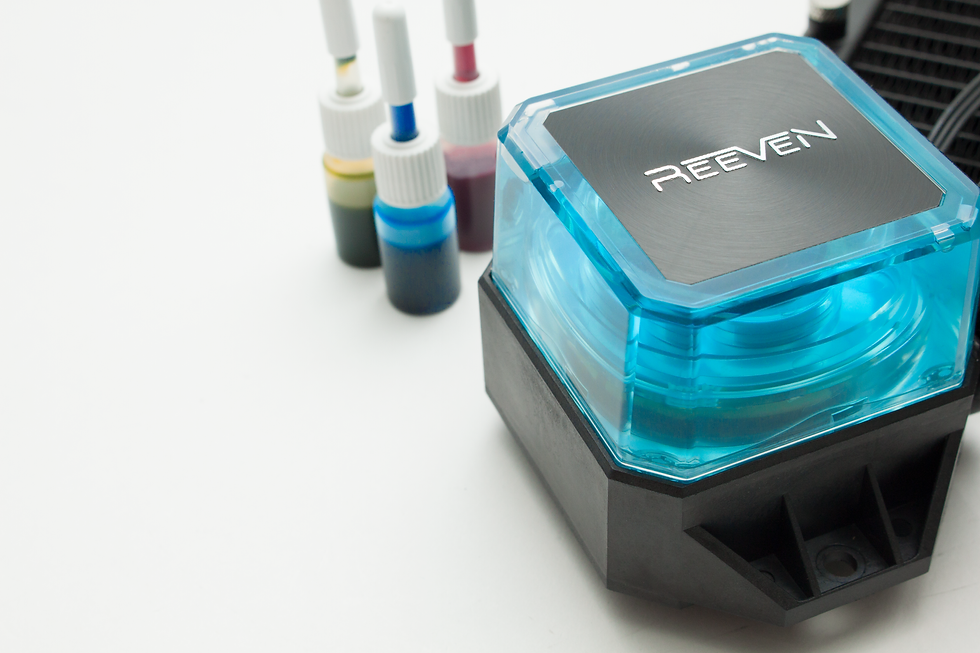

Color Ink

The pre-filled cooler comes with 3 bottles of RGB dye (blue, yellow and green) that can be mixed into the coolant to match your rigs color scheme.

NAIA 240 - Case View
NAIA 240 - Blue Themed Case
NAIA 240 - Green Themed Case
NAIA 240 - Purple Themed Case
NAIA 240 - Yellow Themed Case
NAIA 240
NAIA 240 - Pump Design
NAIA 240 - Base Plate
NAIA 240 - Durable Pipes
NAIA 240 - Coldwing 12
NAIA 240 - Mounting Kit
NAIA 240 - Contents

SPECIFICATIONS

Model Number:

Socket:





Overall Dimension:

Fan Dimension:

Fan Speed:

Air Flow:

Static Pressure:

Noise Level:

Weight (with Fan):

UPC Code:

EAN Code:

RW-2401

INTEL: LGA 115x / 1366 / 2011(V3) / 2066
AMD: AM2(+) / AM3(+) FM1 / FM2(+) /
AM4 / TR4 (Upgrade Kit required!)



(W)272 x (H)52 x (D)120 mm (with fan)

120 x 120 x 25 mm

300(+300/-100)~1600(±10%) RPM

16.93~90.28 CFM

0.003~0.08 inch H₂O

6.5~30.9 dBA

1,290g

840636100169

4717011050165
